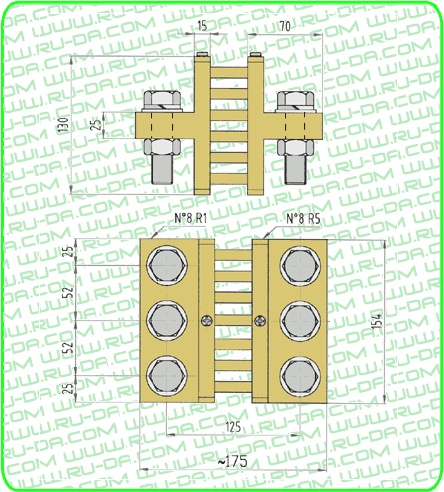

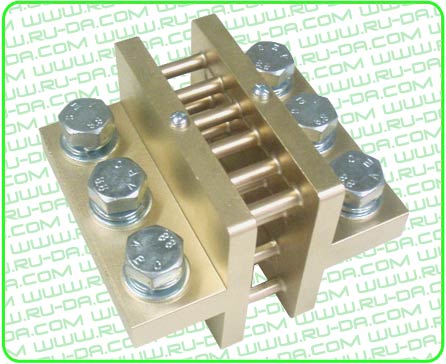

DIN series 43703, 5,000-6,000 amps 60mV shunt, Class 0,5%




  • Compliant with DIN 43703

  • Available in ratings from 5,000 to 6,000 amps

  • Class 0,5%

  • Voltage drop 60mV



  • Available in 50mV, 75mV, 80mV etc.

  • If our standard product does not meet your needs, please call

Screws

6 studs M20x75 + washers and nuts

2 studs TC Comby M5x8 Zinc + washers
