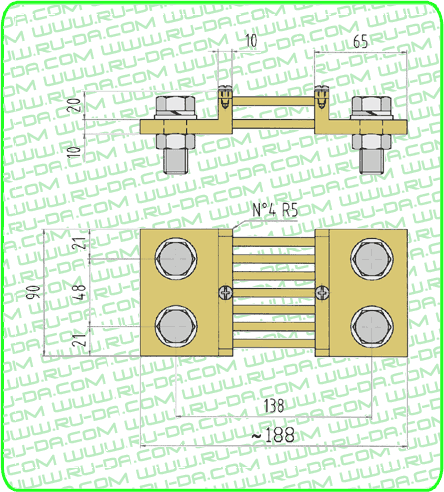

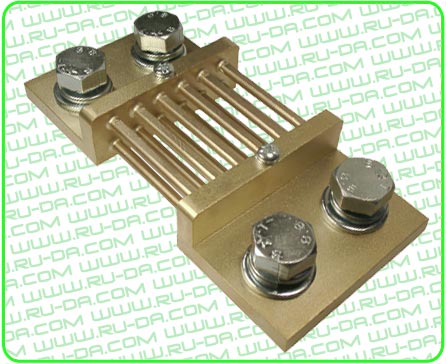

DIN series 43703, 1,200-1,500 amps 100mV shunt, Class 0,5%




  • Compliant with DIN 43703

  • Available in ratings from 1,200 to 1,500 amps

  • Class 0,5%

  • Voltage drop 100mV

  • Available in 50mV, 75mV, 80mV etc.

  • If our standard product does not meet your needs, please call


Screws

4 studs M16x45 + washers and nuts

2 studs TC Comby M5x8 Zinc + washers
